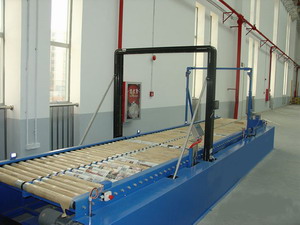

| Dimensioner 1 |
 |
Specification:
| 1. |
Size prescision: ¡À5mm |
| 2. |
MAX product size: 3000x1280x1280mm [ LxWxH ] |
| 3. |
MIN product size: 200x100x50mm [ LxWxH ] |
| 4. |
Weight presicion: ¡À1/4000 |
| 5. |
MAX weight: 2000kg |
| 6. |
Product shape: not fixed |
| 7. |
Product direction: not fixed |
| 8. |
Speed: 120m/min |
| 9. |
The motor, infrared ray screen are made in Germany |
|

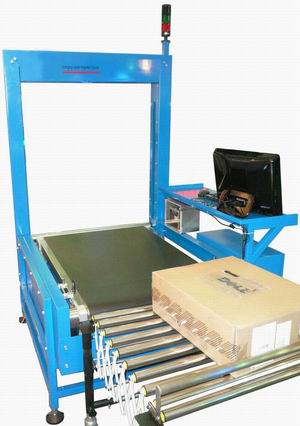

| Dimensioner 2 with barcode reading and check weighing |
 |
Specification:
| 1. |
Size prescision: ¡À5mm |
| 2. |
MAX product size: 1000x800x1000mm [ LxWxH ] |
| 3. |
MIN product size: 50x50x50mm [ LxWxH ] |
| 4. |
Weight presicion: ¡À1/1000 |
| 5. |
MAX weight: 120kg |
| 6. |
Product shape: not fixed |
| 7. |
Product direction: not fixed |
| 8. |
Speed: 35bpm |
| 9. |
Barcode read and save function |
| 10. |
Computer end products management software, extendable for weight or freight printing or labelling |
| 11. |
Whole system size can be customerized |
|

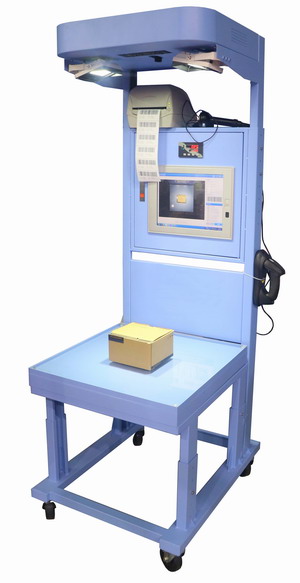

| Dimensioner 3 with barcode reading, size measuring, and check weighing |
 |
Specification:
| 1. |
Size prescision: ¡À5mm |
| 2. |
MAX product size: 1000x1000x1000mm [ LxWxH ] |
| 3. |
MIN product size: 50x50x20mm [ LxWxH ] |
| 4. |
Weight presicion: ¡À1/1000 |
| 5. |
MAX weight: 150kg |
| 6. |
Product shape: Regular |
| 7. |
Product direction: not fixed |
| 8. |
Speed: Statistic |
| 9. |
Barcode reading, External size measuring, weighing |
| 10. |
Computer end products management software, extendable for weight or freight printing or labelling |
| 11. |
Optional Roller Conveyor |
|
|
|
